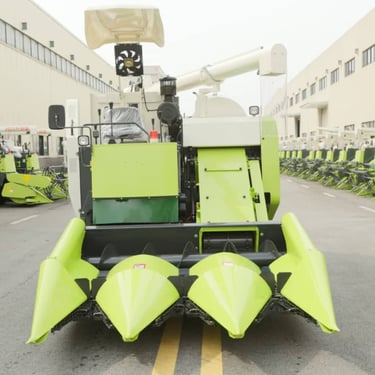

Mini Combine Harvester

1. Model: (88 Hp) - (102 Hp) - (120 Hp)

2. Structure type: vertical axial flow, full feed, self-propelled with rubber tracks

Engine: 4-cylinder, vertical, water-cooled, equipped with direct injection and turbocharging

Engine Model: 4D32RT30/1024

Rated power: 87.5 kW (120 hp) RPM: 2400 rpm

3. Operating Dimensions (L×W×H): 5670 × 2560 × 2950 mm

4. Weight: 3460 kg

5. Working width: 2200 mm

6. Feed: 6.5 kg/s

7. Minimum ground clearance: 320 mm

8. Working speed: 1.8 – 5.3 km/h

9. Capacity: 0.25 – 0.65 ha/h

10. Fuel consumption: 18.5 – 40 kg/ha

11. Cutting Unit Type: Standard, Type II

Reaper and threshing

12. Reaper auger: telescopic transverse conveying auger

13. Reel Type: Eccentric Teeth (Offset)

Diameter: 1000 mm

Number of slats: 5 pieces

14. Threshing drum: vertical axial flow, studded teeth

External dimension (D×L): Ø620 × 2200 mm

15. Concave: lattice type

16. Clutch: Wet Friction

17. Fan Type: Centrifugal

Diameter: Ø346 mm

Quantity: 1 Piece

Chassis and transmission

18. Tracks: 550 × 90 × 56 mm

19. Track: 1250 mm

20. Transmission: Hydraulic Continuously Variable (HST)

21. Lead Auger: Stud Tooth Auger
